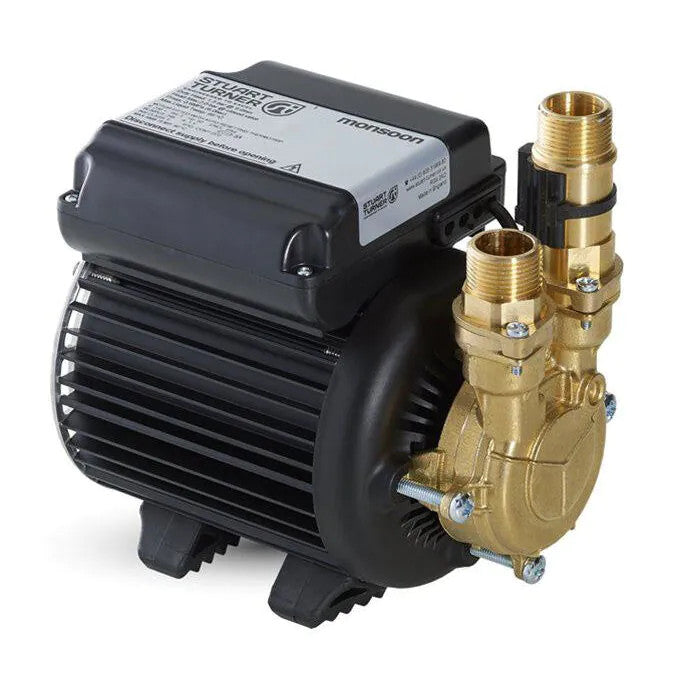

Stuart Turner Monsoon S4.5 Single head 4.5 BAR Shower Pump 46420

Stuart Turner Monsoon S4.5 Single head 4.5 BAR Shower Pump 46420

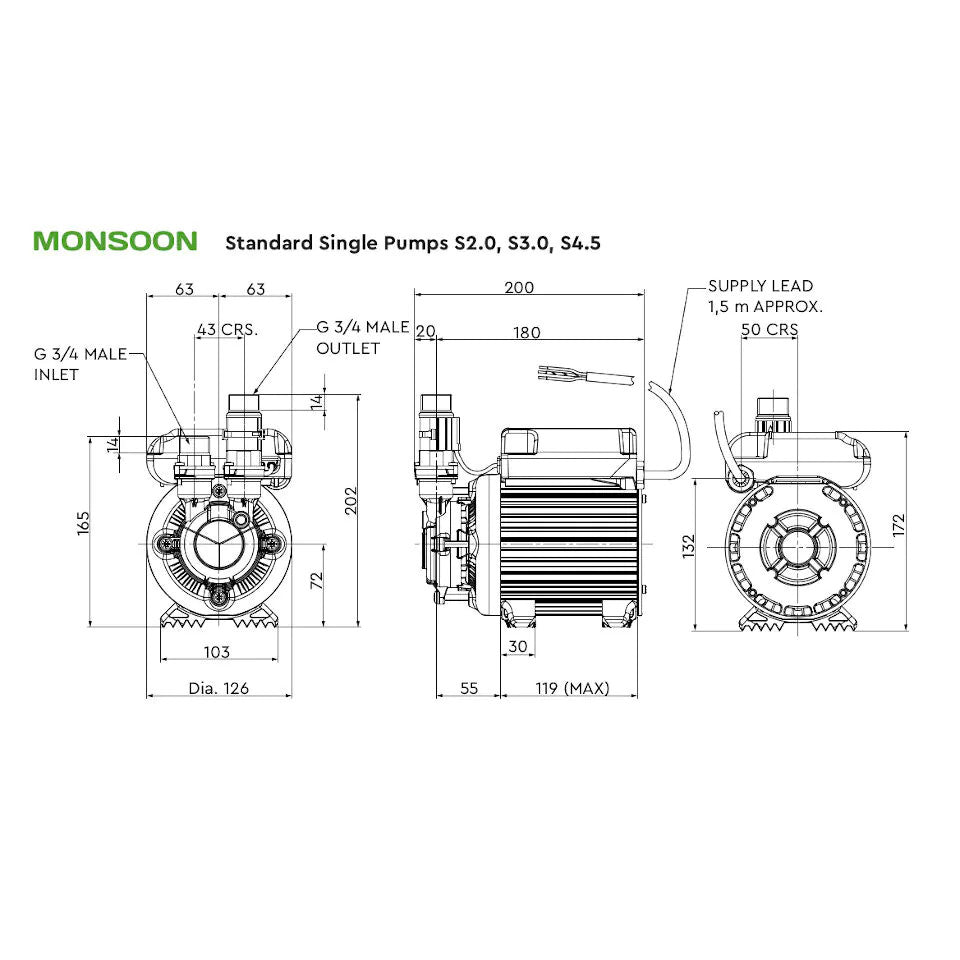

The Monsoon Standard (positive) 4.5 bar single pump is ideal for boosting the water pressure and flow in vented systems. They may be used to: Boost the water pressure in either the hot or cold water supply. Boost the blended water outlet between the shower valve and the shower rose. Applications - Blended shower water, single tap, boost hot or cold water to individual taps. Not suitable for pumping water supplies to common mixers. Stuart Turner Monsoon Shower Pumps Extremely system friendly Robust brass bodied construction Fully WRAS approved and CE compliant Quiet operation and smooth system performance Long life with built-in engineering excellence Designed to be used for long periods of time Built-in safety low voltage controls All pumps are supplied with 22 mm push-in x 300 mm anti-vibration flexible hoses. All flexible hoses feature integral isolating valves. All pumps supplied pre-wired with 1.5 metre cable, anti-vibration feet. All pumps have G¾ threaded connections. Reassurance of up to a 5-year guarantee (subject to conditions) Technical Specification The Pump Inlet strainer Stuart hard face mechanical seal Flow switch sensitivity: approx. 0.6 l/min Max.inlet head: 14 metres Plumbing connection: G ¾ " male Flexible hose: G ¾ " female x 22 mm push-in c/w isolating valves x 305 mm long Anti vibration feet The Motor Power Supply: 230/1/50 Enclosure rating: IPX4 Motor: Induction type, permanent capacitor, auto resetting protective thermotrip Power consumption: 555 Watts Full load: 2.4 Amps Fuse rating: 5 Amps Pre wired Rating: Continuous (S1) @ 9 l/min and above Gross weight (packed): 7.1 Kg.
