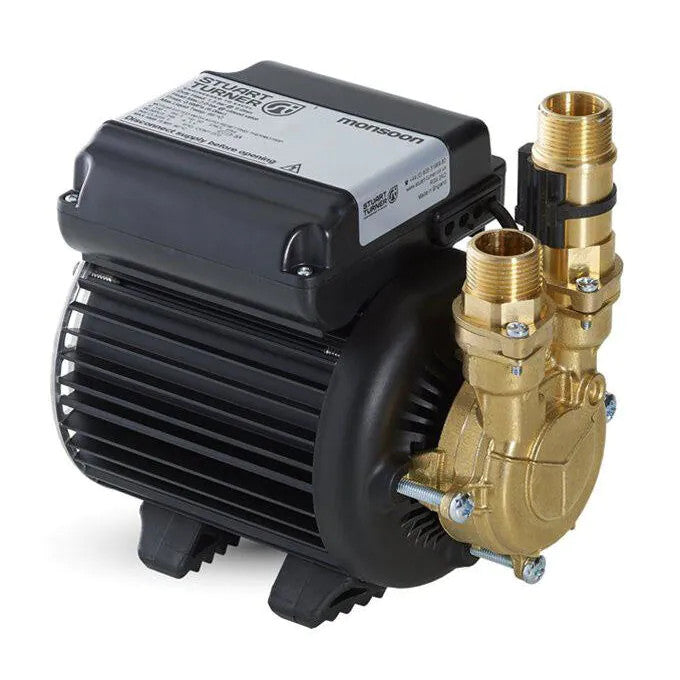

Stuart Turner Monsoon U3.0 Single head 3.0 BAR Shower Pump 46413

Stuart Turner Monsoon S3.0 Single head 3.0 BAR Shower Pump 46419

Monsoon Standard Single pumps are ideal for boosting hot and cold water supplies to taps, showers, a complete bathroom or the whole house in low pressure gravity systems.

Features:

• Suitable for use where there is already more than 1 litre/min flow from the outlet(s) to be boosted.
• Premium quality brass pump supplied with flexible hoses with integral ISO valves.
• Suitable for positive or head applications.
• Pre-wired with 1.5 metre power cable.
• EPDM/PTFE/Al. Oxide seal.
• Very quiet operation.
• Anti-vibration feet.
• Continuously rated.

Technical data:

• Material - Brass

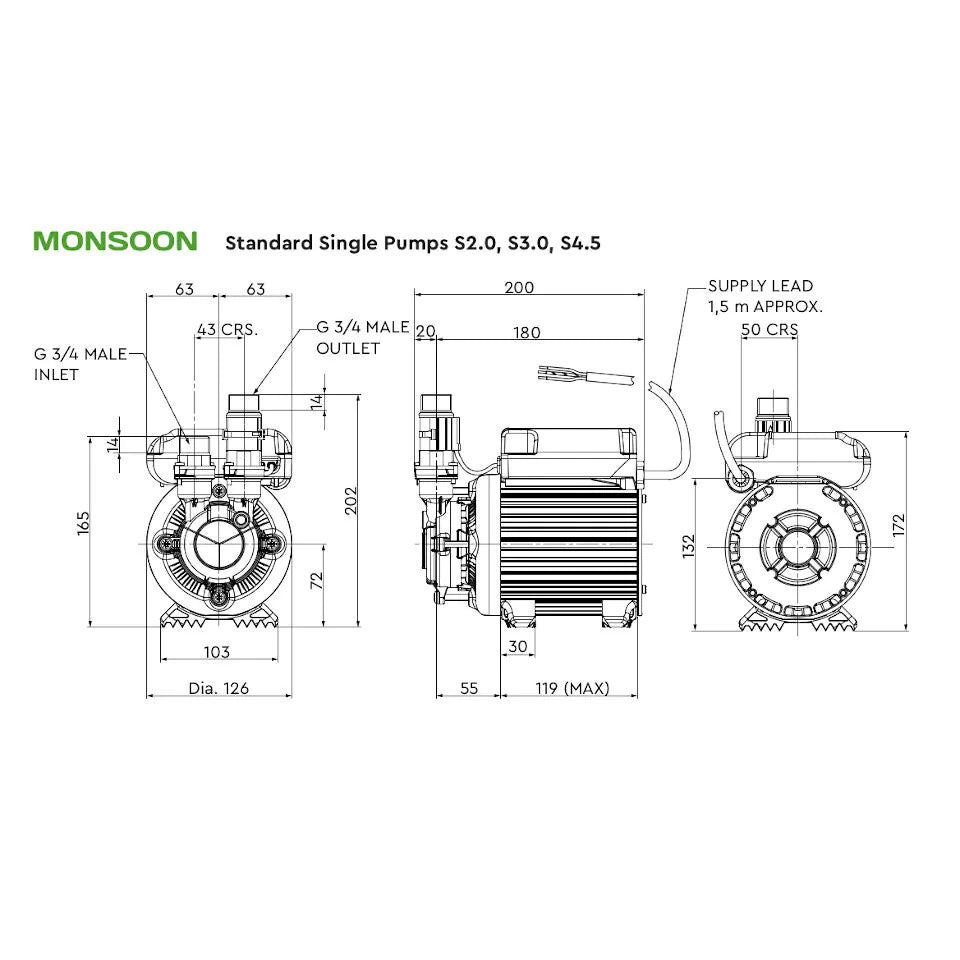

• Length - 200mm
• Width - 126mm
• Weight(including fittings) - 5.4kg
• Enclosure protection - IPX4
• Pump Type - Peripheral
• Typical Value - 48dBA
• Power Supply (Vac/Ph/Hz) - 230 V a.c. / 1 / 50Hz
• Current- full load - 1.7Amps
• Power consumption P1 - 385W
• Fuse rating - 5Amps
• Anti-vibration Feet - Yes
• Inlet strainer(s) - Yes
• Flexible Hoses - 2
• Dry Run Protection - Yes
• Max. Head-closed valve - 3.0Bar
• Performance at 9ltr/min - 2.5Bar
• Performance at 18ltr/min - 1.6Bar
• Max. Flow - 33ltr/min
• Max. Static Inlet Pressure - 14mtr
• Max. Working Pressure - 600kPa (6.0Bar)
• Max. Ambient Air Temperature - 40°C
• Min. / Max. Water Temperature - Min. 4°C / Max. 65°C
• Flow Switch Sensitivity - approx. 0.6ltr/min
• Pump Connections - G¾ male
• Guarantee - 5 year
• Brand - Stuart Turner
