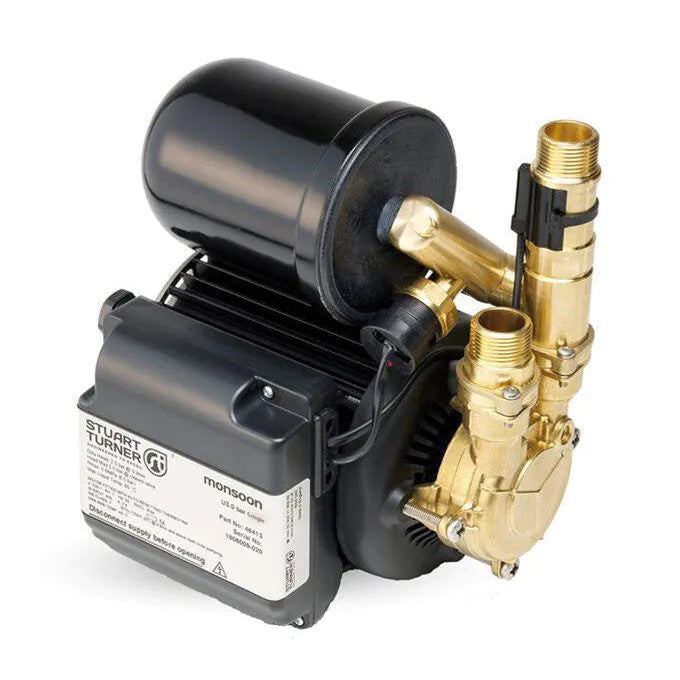

Stuart Turner Monsoon U4.5 Single head 4.5 BAR Shower Pump 46414

Stuart Turner Monsoon U4.5 Single head 4.5 BAR Shower Pump 46414

Monsoon Universal Single boosting hot and cold water supplies to taps, showers, a complete bathroom or the whole house in low pressure gravity systems.

Features:

• Monsoon Universal pumps are fully automatic, do not require a gravity flow of water to start and are suitable for both positive and negative head applications.
• Suitable for use where there is less than 1 litre/min flow from the outlet(s) to be boosted.
• Premium quality brass pump supplied with flexible hoses with integral ISO valves.
• Pre-wired with 1.5 metre power cable.
• EPDM/PTFE/Al. Oxide seal.
• Very quiet operation.
• Anti-vibration feet.
• Continuously rated.

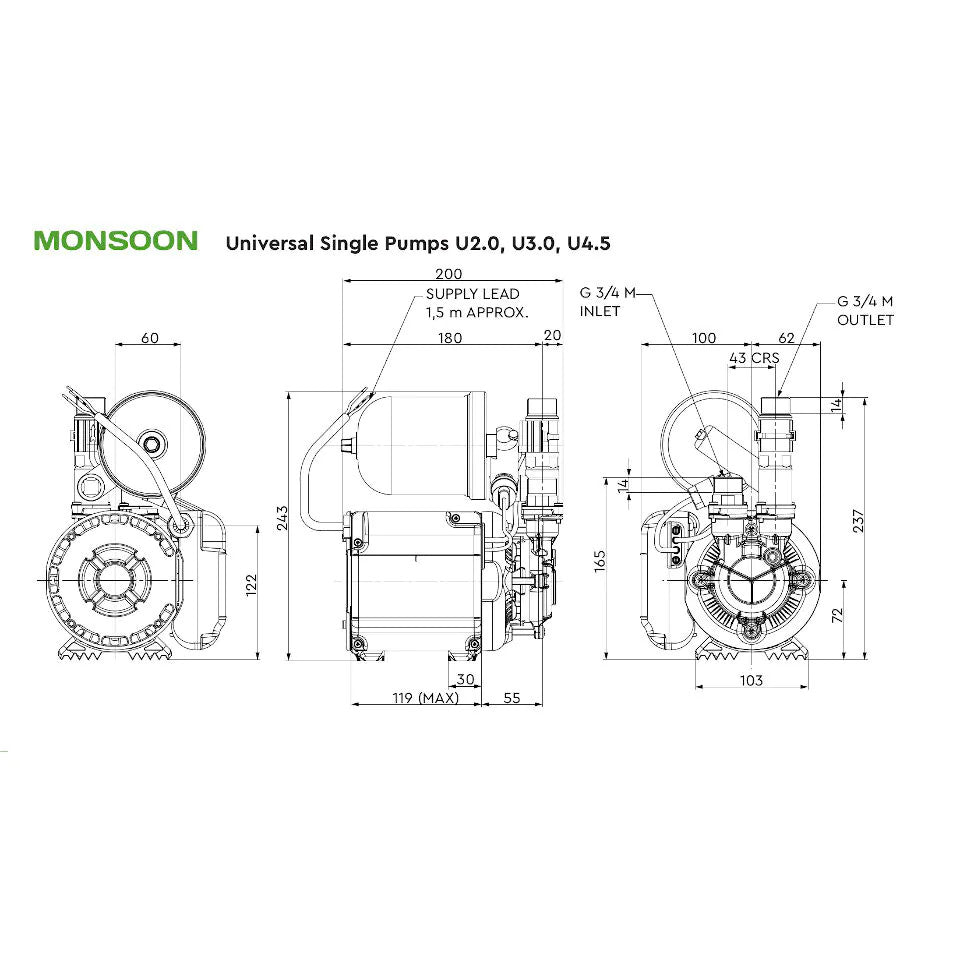

Technical data:

• Material - Brass
• Length - 200mm
• Width - 162mm
• Weight(including fittings) - 7.3kg
• Enclosure protection - IPX4
• Pump Type - Peripheral
• Typical Value - 55dBA
• Power Supply (Vac/Ph/Hz) - 230 V a.c. / 1 / 50Hz
• Current- full load - 2.5Amps
• Power consumption P1 - 555W
• Fuse rating - 5Amps
• Anti-vibration Feet - Yes
• Inlet strainer(s) - Yes
• Flexible Hoses - 2
• Run on Timer - 3sec
• Dry Run Protection - Yes
• Max. Head-closed valve - 4.5Bar
• Performance at 9ltr/min - 3.5Bar
• Performance at 18ltr/min - 1.7Bar
• Max. Flow - 26ltr/min
• Max. Static Inlet Pressure - 12mtr
• Max. Static Outlet Pressure - 12mtr
• Max. Working Pressure - 600kPa (6.0Bar)
• Max. Ambient Air Temperature - 40°C
• Min. / Max. Water Temperature - Min. 4°C / Max. 65°C
• Flow Switch Sensitivity - approx. 0.6ltr/min
• Pump Connections - G¾ male
• Guarantee - 5 year
• Brand - Stuart Turner
