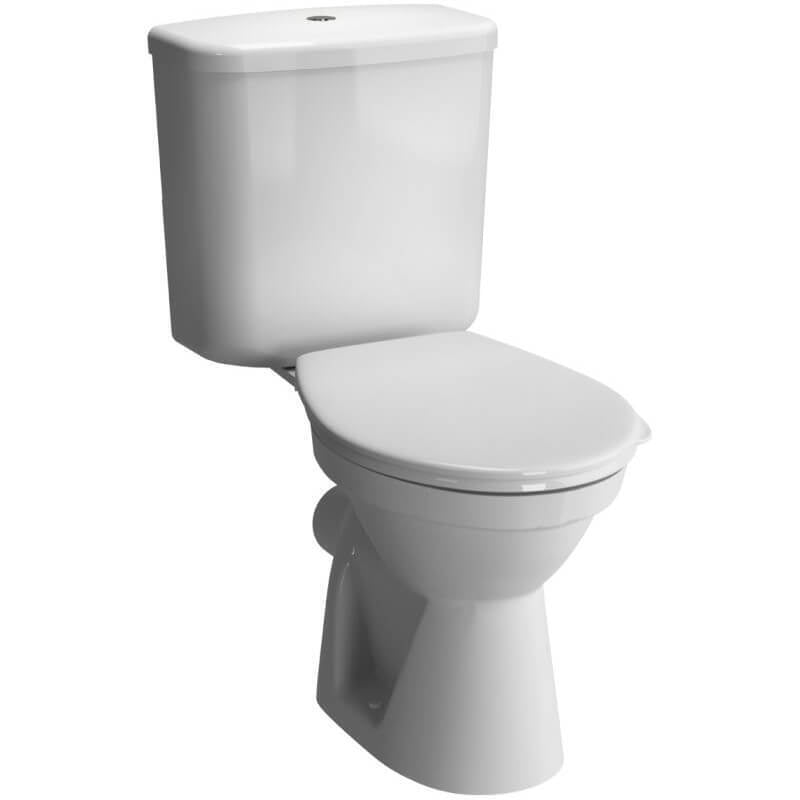

VITRA MILTON close coupled PAN cistern and seat 5111L003-0075

VITRA MILTON close coupled PAN cistern and seat 5111L003-0075

This extremely fabulous Milton Close-Coupled WC Pan from Vitra A is characterised by magnificence and splendour. The minimalist design, made from vitreous china material, is sturdy and durable, proving its durability over the long run. This WC, along with a cistern and toilet seat, will ultimately enhance the appearance of your bathroom.

The gracious unit is designed for comfortable, daily use and finished in an indulgent white finish. A 10-year guarantee gifts you peace of mind when you purchase this WC pan. The toilet seat is also backed with a 2-year guarantee from the company.

• Made from Duroplast.
• Shape: Oval.
• Horizontal outlet.
• Supplied with dual flush cistern and standard seat and cover.
• Suitable for floor-mounted installation.
• Flush capacity: full flush 6 litre and half flush 3 litre.
• Overall size: 380mm x 785mm [Width x Height].
• Pan size: 360mm x 400mm [Width x Height].
• Projection: 690mm.
• Cistern size: 380mm x 185mm [Width x Depth].

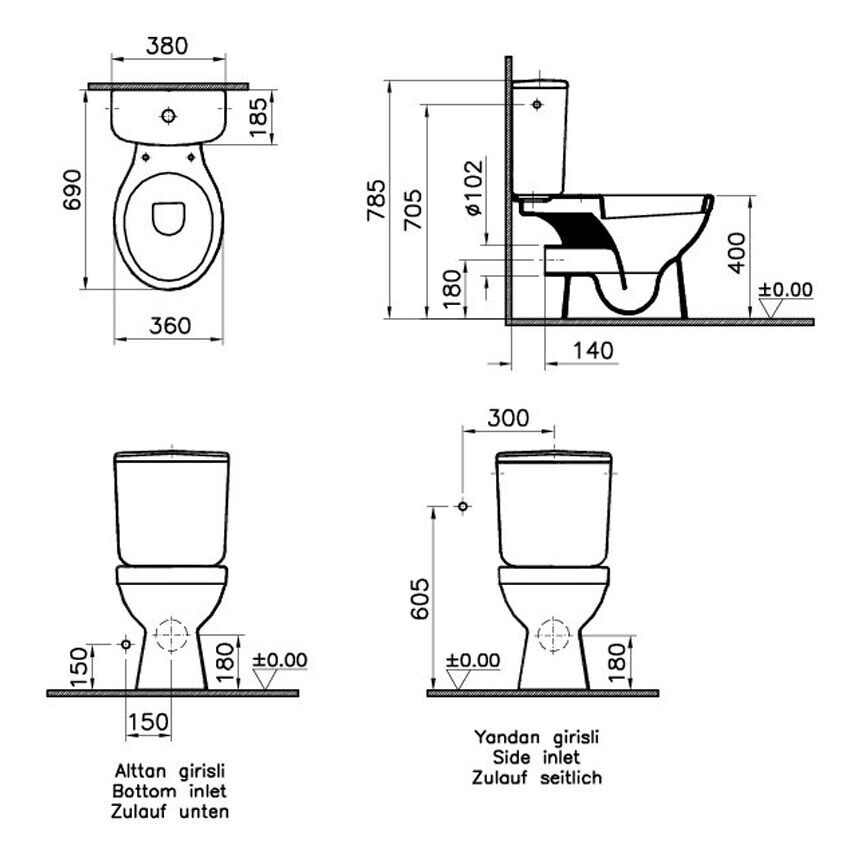

• For complete size details, please refer to the technical drawing.

Info / Size (mm)

• Toilet
• Width: 380 mm
• Projection: 690 mm
• Height: 785 mm

Technical Specifications

Please note all the measurements are in 'mm'

• Toilet Design: Close Coupled
• Range: Milton
• Colour: White
• Country of Origin: Turkey
• Warranty/Guarantee: 10 Years
• Material: Vitreous China
• Theme: Modern
• Installation Type: Floor Mounted
• Pan Width: 360
• Pan Height: 400
• Toilet Overall Height: 785
• Projection (Depth): 690
• Cistern Included: Yes
• Cistern Width: 380
• Flush Type: Dual
• Full Flush Volume in litres: 6
• Half Flush Volume in litres: 3
• Flush Mechanism: Push Button
• Cistern Lever Or Button Placement: Top
• Outlet: Horizontal
• Configuration: Pan With Cistern and Seat
• Seat Included: Yes
• Seat Type: Standard
• Seat Finish: White
• Barcode: 8693410000000
• Bowl Shape: Elongated
• Product Type: Close Coupled WC
• Base width: 250
• Base Depth (projection): 410
• Outlet Diameter: 102
• Base to centre of outlet: 180
